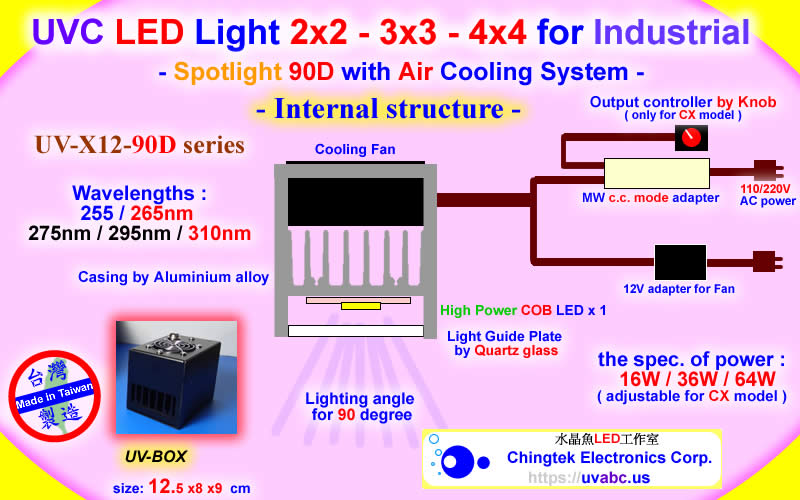

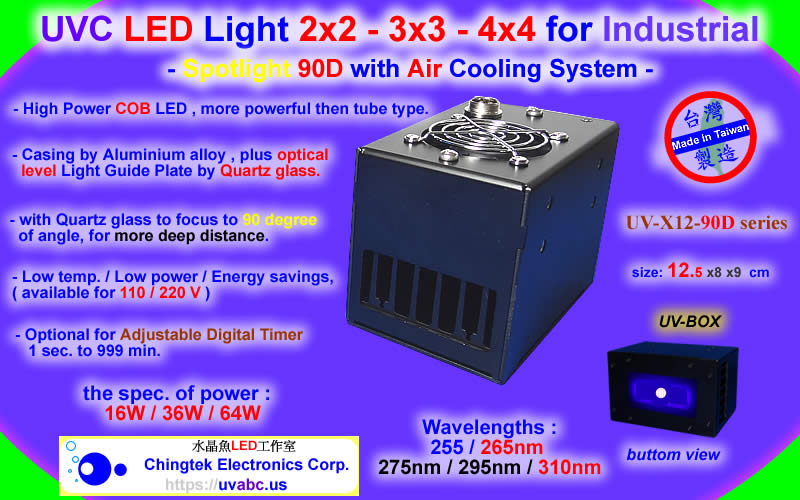

with 16W/36W/64W COB packing High Power UV-LED ultraviolet made by Photon Wave in Korea, Quality guarantee. also with Quartz glass to focus to 90 degree of angle, for more deep distance.




plus 0.2cm optical level Light Guide Plate by quartz glass.Casing by Aluminium alloy ,more durable by good thermal dissipation.Optional U type handle for better operation.




Dimensions / Weight :UV-BOX (main body) 12.5 X 8 x 9 cm / 0.75 Kg




Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )




Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )




Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter




For disinfection/sterilization, protein analysis, DNA sequencing, drug discovery, optical Imaging and sensing of inks, dyes and markers.




Available for Customization for different length (255 / 265 / 275 / 295 / 310 nm) or Watt (power) .

  UV Irradiance for reference :

UVC 265nm - 2x2 ( UV Irradiance : 500 mW /cm2 - 16W per pc )

UVC 265nm - 3x3 ( UV Irradiance : 995 mW /cm2 - 36W per pc )

UVC 265nm - 4x4 ( UV Irradiance :1640 mW /cm2 - 64W per pc )

         Technology

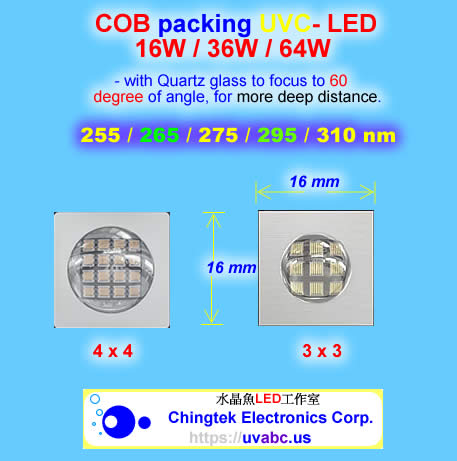

The COB (Chip On Board) Multi-chips LED package benefit from innovations in device technology, chip package and thermalmanagement. This suite of technologies give engineers and system designers the freedom to develop solutions both high in power and efficiency.




with Quartz glass to focus to 90 degree of angle, for more deep distance.

         Specification

   Available for Customization for different length (255 / 265 / 275 / 295 / 310 nm) or Watt (power)

Model No.: UV-X12-16W-265CS-2x2
Spotlight 90D - 16W Economic type
	1.UV light 2x2(16W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 500mW 3.One year guarantee
	-

Model No.: UV-X12-16W-265CS-2x2
Spotlight 90D - 16W Economic type
	1.UV light 2x2(16W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 500mW 3.One year guarantee
	- there are only Economic type for 2x2 (16W) model -

Model No.: UV-X12-36W-265CS-3x3
Spotlight 90D - 36W Economic type
	1.UV light 3x3(36W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 995mW 3.One year guarantee
	-

Model No.: UV-X12-36W-265CX3x3
Spotlight 90D - 36W Adjustable type
	1.UV light 3x3(36W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 995mW (Adjustable 10% to 100%) 3.One year guarantee
	-

Model No.: UV-X12-64W-265CS-4x4
Spotlight 90D - 64W Economic type
	1.UV light 4x4(64W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 1640mW 3.One year guarantee
	-

Model No.: UV-X12-64W-265CX4x4
Spotlight 90D - 64W Adjustable type
	1.UV light 4x4(64W 265nm LED x 1 ) Casing by AL-alloy    /Power module (110/220V, w/ 170cm of AC wire)    /FAN and LED w/ 200cm of DC/control wire 2.UV Irradiance: 1640mW (Adjustable 10% to 100%) 3.One year guarantee
	-

      Optional items

Model No.: CK-UV400
Anti-UV Safety goggles
	Anti-UV 400nm Safety goggles ( for UV 280nm - 400nm only )
	-

Model No.: CK-HD001
U type Handle
	the U type Handle for UV-BOX
	-

Model No.: CK-ST007
Adjustable Holder for UV-BOX
	(the adjustable range : left / right 0 ~ 32 cm /height for 0 ~ 38 cm,easy for examination) ( User's Manual ) p.s. Available For customized Holder.
	-

Model No.: CK-TC005
Adjustable Digital Timer
	1 sec. to 999 min./ size:12.5X8.5x4.5cm ( User's Manual ) p.s. Optional for extra Pedal switch / Toggle switch
	-

Model No.: CK-TC005-PS
Pedal switch
	( size：8.3 X 8 x 3 cm ) ( with control wire : 150 cm )
	-

Model No.: CK-TC005-HS
Toggle switch
	( size：8.3 X 2 x 2 cm ) ( with control wire : 150 cm )
	-
