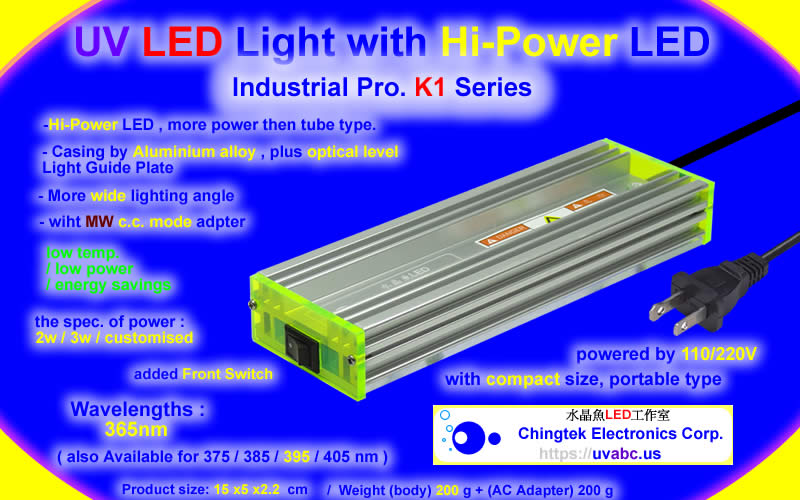

UV LED ultraviolet light Handheld module/lamp

( Industrial Pro. K1 Series )

UV LED ultraviolet light Handheld module/lamp - Industrial Pro. K1 Series  (UVA 365/375/385/395/405nm) For Industrial Conformal Coating / UV curing system / 3D printing / Fluorescence check / adhesive curing - UV.Chingtek.net


         Key Features


  1. with1W / 3W K1 packing High Power UV-LED made by listed company in Taiwan, Quality guarantee.

  2. plus 3 mm optical level Light Guide Plate. Added Front Switch. Casing by Aluminium alloy ,more durable by good thermal dissipation. Optional U type handle for better operation.

  3. Dimensions / Weight :
                UV-BOX       (main body) 15 X 5 x 2.2 cm / 200 g
                AC adapter   200 g

  4. Optional for Adjustable Digital Timer - 1 sec. to 999 min. ( to purchase extra control box )

  5. Optional for Adjustable output power - 10% to 100%. ( to purchase extra control box )

  6. Low temp. / Low power / Energy savings, ( available for 110 / 220 V )with MeanWell c.c. mode adapter

  7. For Industrial Diagnostic & Inspection / SLA/DLP 3D printing / Flatbed Printer / Fluorescence check / UV adhesive curing / LOCA ( Liquid optical clear adhesive) curing

  8. The Detector / Checker for Conformal Coating of PCBA / COUNTERFEIT FAKE Money Bank Note / ID card / Passport / Security (finance).

  9. Avaliable for Customization for different length (365/375/385/395/405nm) or Watt (power) .

  UV Irradiance for reference :

  1. UVA 365nm ( UV Irradiance : 50 mW /cm2 - 1W K1 chip x 2 pcs )
  2. UVA 395nm ( UV Irradiance : 60 mW /cm2 - 1W K1 chip x 2 pcs )
  3. p.s.measured by EIT UV Power Puck II Meter, and the distance of test is 10 mm .




         Technology


Technology - UV LED ultraviolet light module/lamp - Industrial Pro. K1 Series  (UVA 365/375/385/395/405nm)

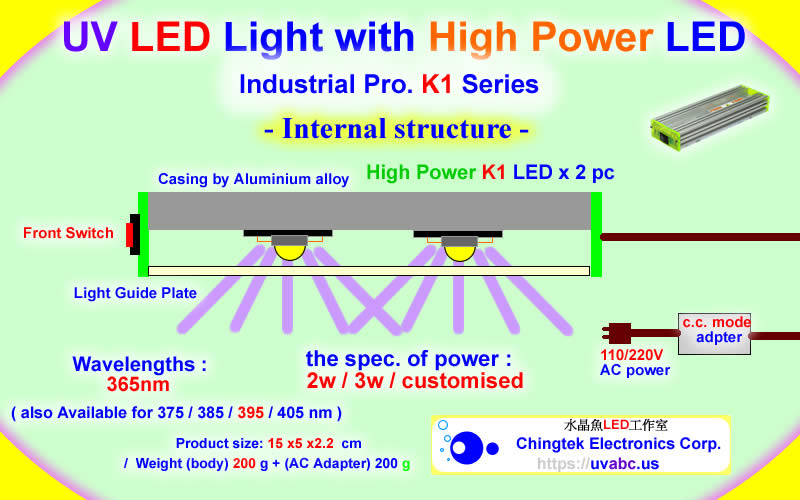

      Internal Structure


Internal Structure - UV LED ultraviolet light module/lamp - Industrial Pro. K1 Series  (UVA 365/375/385/395/405nm)

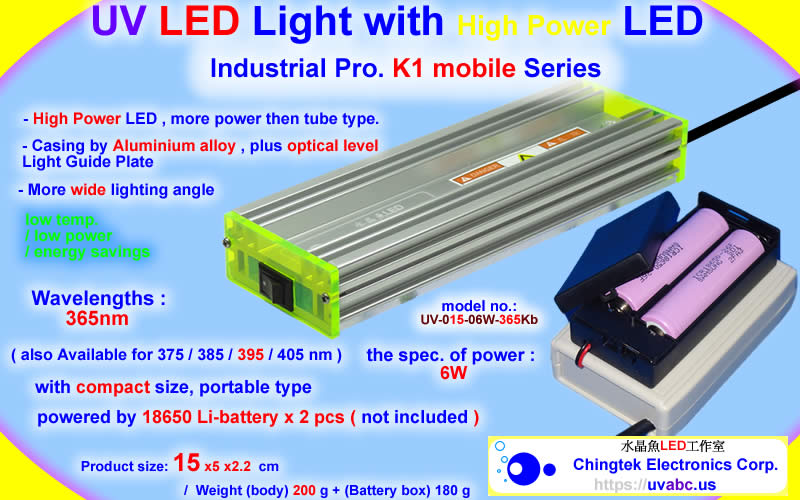

      the Mobile Series


UV LED ultraviolet light module/lamp - Industrial Pro. K1 mobile Series  (UVA 365/375/385/395/405nm)



         Specification


   Avaliable for Customization for different length (365 / 375 / 385 / 395 / 405nm) or Watt (power)


Model No.: UV-015-02W-365K

Industrial Pro. K1 Series - 2W UV LED

1.UV light(1W 365nm LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 50 mW/cm2
3.One year guarantee          Length: 15 cm
-
Model No.: UV-015-03W-365K

Industrial Pro. K1 Series - 3W UV LED

1.UV light(1W 365nm LED x 3 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 70 mW/cm2
3.One year guarantee          Length: 15 cm
-

Model No.: UV-030-06W-365K

Industrial Pro. K1 Series - 6W UV LED

1.UV light(1W 365nm LED x 6 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 70 mW/cm2
3.One year guarantee          Length: 30 cm
-
Model No.: UV-048-10W-365K

Industrial Pro. K1 Series - 10W UV LED

1.UV light(1W 365nm LED x 10 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 70 mW/cm2
3.One year guarantee          Length: 48 cm
-

Model No.: UV-063-30W-365K

Industrial Pro. K1 Series - 30W UV LED

1.UV light(3W 365nm LED x 10 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 150 mW/cm2
3.One year guarantee          Length: 63 cm
-
Customization Model No.: UV-xxx-yyW-365K

Industrial Pro. K1 Series - 6W - 60W UV LED

1.Customization ( 3W 365nm LED ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /AC adapter (110/220V, w/ 170cm of AC wire)
2.UV Irradiance: 150 mW/cm2
3.One year guarantee          Length: 15 cm - 93 cm
-

Model No.: UV-015-06W-365Kb

Industrial Pro. K1 mobile Series - 6W UV LED

1.UV light(3W 365nm LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 100 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.
Model No.: UV-015-06W-365Kb

Industrial Pro. K1 mobile Series - 6W UV LED

1.UV light(3W 365nm LED x 2 ) Casing by AL-alloy
   /added Front Switch + Light Guide Plate
   /DC BOX(using 18650 Li-battery x 2, w/ 100cm of wire)
2.UV Irradiance: 100 mW/cm2
3.One year guarantee          Length: 15 cm
- not included the batteries.



      Optional items


Model No.: CK-UV400
Anti-UV Safety goggles
CK-UV400 Anti-UV 400nm Safety goggles Anti-UV 400nm Safety goggles
( for UV 200nm - 400nm only )
-
Model No.: CK-HD001
U type Handle
CK-HD001 the U type Handle for Industrial Pro. the U type Handle for Industrial Pro.

-
Model No.: CK-ST005
Adjustable Holder for Industrial Pro.
( Adjustable range : height for 0 ~ 25 cm )

( User's Manual )

p.s. Available For customized Holder.
-
Model No.: CK-TC005
Adjustable Digital Timer
CK-TC005 Adjustable Digital Timer 1 sec. to 999 min./ size:12.5X8.5x4.5cm

( User's Manual )

p.s. Optional for extra Pedal switch / Toggle switch
-
Model No.: CK-TC005-PS
Pedal switch
( size:8.3 X 8 x 3 cm )
( with control wire : 150 cm )
-
Model No.: CK-TC005-HS
Toggle switch
( size:8.3 X 2 x 2 cm )
( with control wire : 150 cm )
-



  P.S.

  1. Caution !! Do not look directly at the UV ultraviolet light , and please wear safety Goggles.

UV LED ultraviolet light /module wiht High Power LED (UVA 365/385/395/405nm ) - UV.Chingtek.net

>>>    Click me for sending Inquiry !!    <<<



      Introduction of accessories


CK-ST005 Adjustable Holder for Industrial Pro.

CK-ST005 Adjustable Holder for Industrial Pro.

the U type Handle for Industrial Pro.

the U type Handle for Industrial Pro.

CK-UV400 Anti-UV 400nm Safety goggles

CK-UV400 Anti-UV 400nm Safety goggles

CK-TC005 Adjustable Digital Timer

CK-TC005 Adjustable Digital Timer




      Application example


The testing for PCBA with Conformal Coating by UV LED ultraviolet light/lamp.

The testing for PCBA with Conformal Coating by UV LED ultraviolet light/lamp.

The testing for Fluorescence by UV LED ultraviolet light/lamp.

The testing for Fluorescence by UV LED ultraviolet light/lamp.
